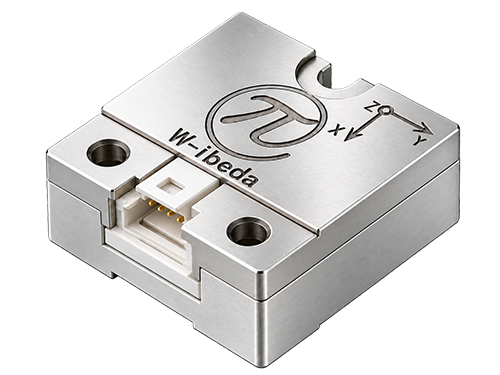

IMU8606
Product Performance Indicators
Gyroscope
Range: ±250 °/s (configurable)
Zero bias instability: 4°/h (Allan variance)
Zero-bias stability: 10°/h (1σ, 10s smoothing)
Full temperature zero bias: ±0.07°/s (1σ temperature compensation, calibrated at 85?C)
Angle Random Walk (ARW): 0.35°/√hr
Accelerometer
Measuring range: ±4g (configurable)
Zero bias instability: 50μg (Allan variance)
Zero bias stability: 0.1mg (1σ, 10s smoothing)
Full temperature zero bias: ±2mg (1σ temperature compensation, calibrated at 85?C)
Velocity Random Walk (VRW): 0.04 m/s/√hr
Product Features
- ? Excellent built-in security
- ? The product is compatible with flying cars
- ? ISO26262 ASIL-B
- ? Built-in multiple error compensation algorithms
- ? Low power consumption, small size, and easy integration characteristics
- ? Support customized UART, CAN TTL, and timing protocol
- ? Built-in high-precision automotive-grade MEMS gyroscope and MEMS accelerometer
Application Scenarios
eVTOL
1
Agricultural drones
2
Delivery drone
3
Firefighting drone
4
Vertical takeoff and landing fixed wing unmanned aerial vehicle
5
